Cobots•DUCO Robots•Commercially available
DUCO Robots GCR series (GCR3 to GCR25)
By DUCO Robots

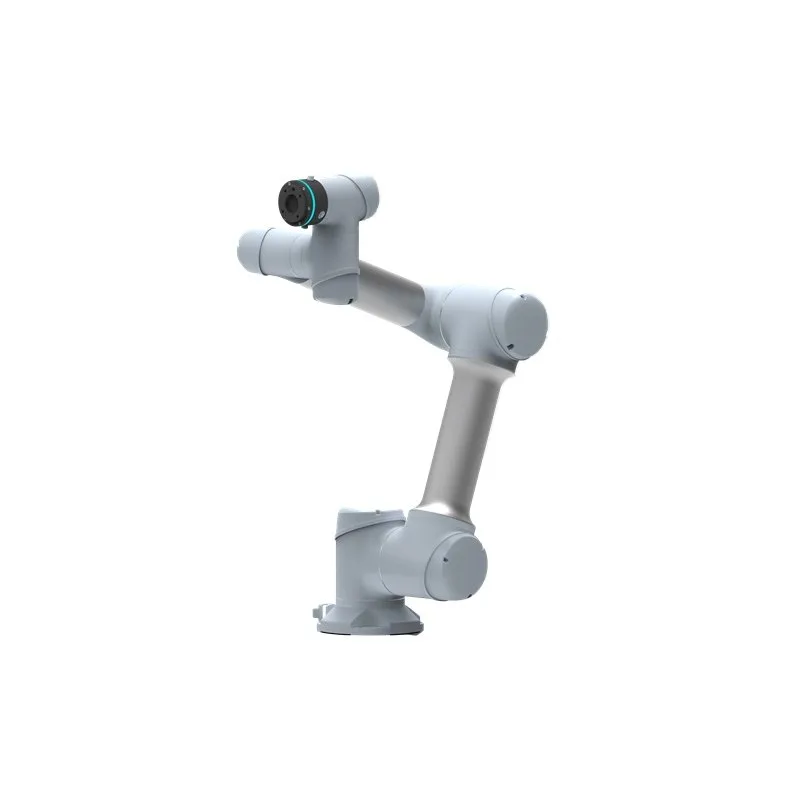

The DUCO GCR series consists of six-axis cobots from 3 to 25 kg payload.
DUCO Robots, part of SIASUN, offers the GCR series with ten six-axis cobots from 3 to 30 kg payload and 618 to 2000 mm reach. The manufacturer pages list, among others, the GCR3-618 (3 kg, ± 0.02 mm), the GCR5-910 (5 kg, 917 mm, ± 0.02 mm), the GCR10-1300 (10 kg, 3.8 m/s, ± 0.03 mm) and the GCR20-1400 (20 kg, ± 0.05 mm). Protection class is IP54 or IP65, communication runs over TCP/IP, Modbus/TCP, Profinet and EtherNet/IP. DUCO states that the GCR series was among the first Chinese cobot platforms with IEC 61508 certification by TÜV SÜD.
- Collaborative robot armBuilt to work alongside people, after a risk assessment of the application.
- 4 modelsFrom GCR3-618 to GCR20-1400, see the model table.
- Collaborative robot arm (series)In the cobots category.
Status 2026
Commercially availableThis model is listed as commercially available. Delivery, configuration and support vary by supplier and region.Designed for
- Assembly
- Palletising
- Machine tending
- Type
- Cobots
- Origin
- China
- Deployment
- Not confirmed
- Region
- Not publicly confirmed
- Applications
- 3 applications
- Models
- 4
What is DUCO Robots GCR series (GCR3 to GCR25)?
DUCO Robots GCR series (GCR3 to GCR25) is a series of collaborative robot arms from DUCO Robots from China, listed for assembly, palletising and machine tending. Key figures: payload 3 to 25 kg (depending on model), reach 618 to 2,000 mm (depending on model), degrees of freedom 6. Some figures apply under specific conditions; see the robot profile. Market status: commercially available. Availability and deployment options should be confirmed with a supplier. Robotleasen does not sell robots; it helps businesses compare suppliers and recorded information.
Video
GCR series (GCR3 to GCR25) in action
Video from the manufacturer or an authorised partner.
Technical overview
GCR series (GCR3 to GCR25) in figures
Values as recorded on the robot profile, generally based on manufacturer information. Configuration and operating conditions can change the figures; confirm them with the supplier.
- 3 to 25 kg (depending on model)
- Payload
- 618 to 2,000 mm (depending on model)
- Reach
- 6
- Degrees of freedom
Put into perspective
- 25 kgAbout 25 one-litre cartons of milk.
- 2 mAbout 3.1 times an adult's arm length (about 65 cm).
In practice
How does the GCR series (GCR3 to GCR25) perform?
All figures come from this robot's profile, according to the manufacturer.
How does it compare with other robots?
We put each value next to the other robots in the same category in our guide where that value is known. Unconfirmed values are marked in the figures above.
- This robot
- Other robots in the category
- Payload25 kgPlace 9 of 540.5 kg30 kg
Higher than 44 of the 53 other robots, equal to 1
- Reach2,000 mmPlace 2 of 49330 mm2,030 mm
Higher than 47 of the 48 other robots
Facts
Did you know?
Notable facts about GCR series (GCR3 to GCR25), its manufacturer and this type of robot
The GCR series (GCR3 to GCR25) comes in 4 models, with a payload from 3 kg to 20 kg.
The first commercially sold cobot was a UR5 from Universal Robots, in December 2008.
Source: Universal Robots, company historyA cobot's payload includes the gripper. A 1 kg gripper on a 5 kg cobot leaves 4 kg for the product.
The safety rules for cobots are set out in ISO 10218 and ISO/TS 15066. The latter gives limit values for contact force per body part.
Source: ISO/TS 15066
Our perspective on GCR series (GCR3 to GCR25)
DUCO Robots, part of SIASUN, offers the GCR series with ten six-axis cobots from 3 to 30 kg payload and 618 to 2000 mm reach. The manufacturer pages list, among others, the GCR3-618 (3 kg, ± 0.02 mm), the GCR5-910 (5 kg, 917 mm, ± 0.02 mm), the GCR10-1300 (10 kg, 3.8 m/s, ± 0.03 mm) and the GCR20-1400 (20 kg, ± 0.05 mm). Protection class is IP54 or IP65, communication runs over TCP/IP, Modbus/TCP, Profinet and EtherNet/IP. DUCO states that the GCR series was among the first Chinese cobot platforms with IEC 61508 certification by TÜV SÜD.
Models
Which GCR series (GCR3 to GCR25) model is right for you?
Compare payload (product plus gripper) and reach first. Values are from the manufacturer.
| Model | Payload | Reach | Repeatability |
|---|---|---|---|
| GCR3-618 | 3 kg | 618 mm | ± 0.02 mm |
| GCR5-910 | 5 kg | 917 mm | ± 0.02 mm |
| GCR10-1300 | 10 kg | 1,300 mm | ± 0.03 mm |
| GCR20-1400 | 20 kg | 1,400 mm | ± 0.05 mm |
Business fit
When might GCR series (GCR3 to GCR25) be a fit?
An initial view based on the recorded category and model information
May be suitable for
- Organisations assessing a robot for a defined task and work environment.
- Teams comparing the robot's recorded profile with other options.
- Businesses that want to validate the application and integration requirements.
Considerations
- Confirm capabilities and current availability with the manufacturer or supplier.
- Check the work environment, integration needs and local support before selecting a model.
Market and supply
Availability
A profile status is not a confirmed offer or delivery time
- Market status
- Commercially available
- Region
- Not publicly confirmed
- Lease / RaaS
- Not confirmed
- Rental
- Not confirmed
Manufacturer and supplier
About DUCO Robots
DUCO Robots is listed in the Robotleasen directory with one robot model.
View supplierCompare
Compare GCR series (GCR3 to GCR25)
| Feature | GCR series (GCR3 to GCR25)DUCO Robots | UR10eUniversal Robots | RB-serieRainbow Robotics |
|---|---|---|---|
| Market status | Commercially available | Commercially available | Commercially available |
| Application | Assembly, Palletising | Machine tending, Packaging | Assembly, Machine tending |
| Deployment | Not confirmed | Check with supplier | Not confirmed |
| Region | Not publicly confirmed | Netherlands | International |
Explore alternatives
Alternatives to GCR series (GCR3 to GCR25)
Profiles from the same category, selected by similar applications
Frequently asked questions
Questions about GCR series (GCR3 to GCR25)
What is the DUCO Robots GCR series (GCR3 to GCR25)?
DUCO Robots GCR series (GCR3 to GCR25) is a series of collaborative robot arms from DUCO Robots from China, listed for assembly, palletising and machine tending. Key figures: payload 3 to 25 kg (depending on model), reach 618 to 2,000 mm (depending on model), degrees of freedom 6. Some figures apply under specific conditions; see the robot profile. Market status: commercially available. Availability and deployment options should be confirmed with a supplier. Robotleasen does not sell robots; it helps businesses compare suppliers and recorded information.
What are the specifications of the DUCO Robots GCR series (GCR3 to GCR25)?
Key figures: payload 3 to 25 kg (depending on model), reach 618 to 2,000 mm (depending on model), degrees of freedom 6. Some figures apply under specific conditions; see the robot profile. Values as recorded on the robot profile, generally based on manufacturer information. Configuration and operating conditions can change the figures; confirm them with the supplier.
Which supplier is listed for the DUCO Robots GCR series (GCR3 to GCR25)?
DUCO Robots GCR series (GCR3 to GCR25) is listed under DUCO Robots, based in China. Check local sales and support terms directly with the supplier.
Is the DUCO Robots GCR series (GCR3 to GCR25) available to buy or lease in the Netherlands?
Commercially available. Deployment: not confirmed. Whether this model is available to buy, rent or lease in the Netherlands depends on the supplier. Ask a supplier to confirm current availability.
How much does the DUCO Robots GCR series (GCR3 to GCR25) cost?
No reliable public price is listed for this model. Costs depend on configuration and supplier.
What is the DUCO Robots GCR series (GCR3 to GCR25) used for?
The applications listed for the DUCO Robots GCR series (GCR3 to GCR25) include assembly, palletising and machine tending.
What are alternatives to the DUCO Robots GCR series (GCR3 to GCR25)?
Profiles include DOBOT CR10, Techman Robot TM S-serie and Franka Emika Panda (FER). Compare their applications, specifications and market status.
News and insights
Articles are currently available in Dutch
Next step
Ask about GCR series (GCR3 to GCR25)
Review the recorded market status, applications and alternatives for this robot.
Sources and checks
Checked against the manufacturer · last checked
- Manufacturer ducorobots.com
Specifications are generally based on manufacturer information and have not been measured by Robotleasen. See our editorial approach.
