Cobots•Delta Electronics•Commercially available

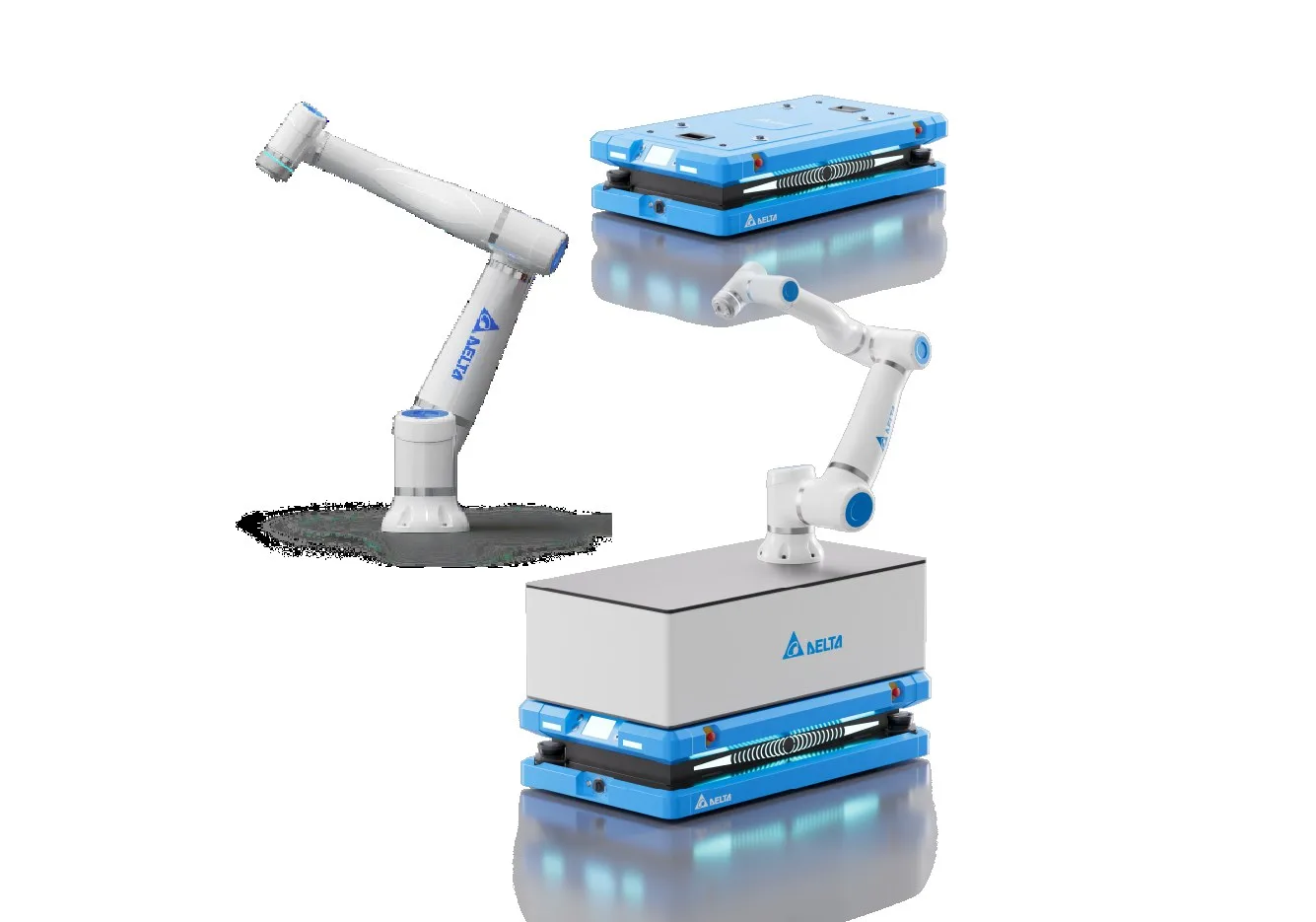

Delta Electronics D-Bot series
The Delta D-Bot series consists of six six-axis cobots from 6 to 30 kg payload.
Delta Electronics presented the D-Bot series at Hannover Messe 2024. The series comprises the models D-Bot 6, 8, 10, 16, 20 and 30, where the number indicates the payload in kg. According to the manufacturer the working range lies between 800 and 1800 mm, accuracy is ± 0.02 mm and axes reach up to 200 degrees per second. An IP66 version is available on request. Delta mentions commissioning within two hours and a safety function that reverses the movement on contact. The series is aimed at pick-and-place, palletising and machine tending, among others.
- Collaborative robot armBuilt to work alongside people, after a risk assessment of the application.
- 6 modelsFrom D-Bot 6 to D-Bot 30, see the model table.
- Collaborative robot arm (series)In the cobots category.
Status 2026
Commercially availableThis model is listed as commercially available. Delivery, configuration and support vary by supplier and region.Designed for
- Pick-and-place
- Palletising
- Machine tending
- Type
- Cobots
- Origin
- Taiwan
- Deployment
- Not confirmed
- Region
- Not publicly confirmed
- Applications
- 3 applications
- Models
- 6
What is Delta Electronics D-Bot series?
Delta Electronics D-Bot series is a series of collaborative robot arms from Delta Electronics from Taiwan, listed for pick-and-place, palletising and machine tending. Key figures: payload 6 to 30 kg (depending on model), reach 800 to 1,800 mm (depending on model), repeatability ± 0.02 mm, degrees of freedom 6. Some figures apply under specific conditions; see the robot profile. Market status: commercially available. Availability and deployment options should be confirmed with a supplier. Robotleasen does not sell robots; it helps businesses compare suppliers and recorded information.
Video
D-Bot series in action
Video from the manufacturer or an authorised partner.
Technical overview
D-Bot series in figures
Values as recorded on the robot profile, generally based on manufacturer information. Configuration and operating conditions can change the figures; confirm them with the supplier.
- 6 to 30 kg (depending on model)
- Payload
- 800 to 1,800 mm (depending on model)
- Reach
- ± 0.02 mm
- Repeatability
- 6
- Degrees of freedom
Put into perspective
- 30 kgAbout 30 one-litre cartons of milk.
- ± 0.02 mmThinner than a sheet of printer paper (about 0.1 mm).
- 1.8 mAbout 2.8 times an adult's arm length (about 65 cm).
In practice
How does the D-Bot series perform?
All figures come from this robot's profile, according to the manufacturer.
How does it compare with other robots?
We put each value next to the other robots in the same category in our guide where that value is known. Unconfirmed values are marked in the figures above.
- This robot
- Other robots in the category
- Payload30 kgPlace 1 of 540.5 kg30 kg
Higher than 46 of the 53 other robots, equal to 7
- Reach1,800 mmPlace 6 of 49330 mm2,030 mm
Higher than 42 of the 48 other robots, equal to 1
Facts
Did you know?
Notable facts about D-Bot series, its manufacturer and this type of robot
The D-Bot series comes in 6 models, with a payload from 6 kg to 30 kg.
The first commercially sold cobot was a UR5 from Universal Robots, in December 2008.
Source: Universal Robots, company historyA cobot's payload includes the gripper. A 1 kg gripper on a 5 kg cobot leaves 4 kg for the product.
The safety rules for cobots are set out in ISO 10218 and ISO/TS 15066. The latter gives limit values for contact force per body part.
Source: ISO/TS 15066
Our perspective on D-Bot series
Delta Electronics presented the D-Bot series at Hannover Messe 2024. The series comprises the models D-Bot 6, 8, 10, 16, 20 and 30, where the number indicates the payload in kg. According to the manufacturer the working range lies between 800 and 1800 mm, accuracy is ± 0.02 mm and axes reach up to 200 degrees per second. An IP66 version is available on request. Delta mentions commissioning within two hours and a safety function that reverses the movement on contact. The series is aimed at pick-and-place, palletising and machine tending, among others.
Models
Which D-Bot series model is right for you?
Model variants and their main differences. Values are from the manufacturer.
| Model | Payload |
|---|---|
| D-Bot 6 | 6 kg |
| D-Bot 8 | 8 kg |
| D-Bot 10 | 10 kg |
| D-Bot 16 | 16 kg |
| D-Bot 20 | 20 kg |
| D-Bot 30 | 30 kg |
Business fit
When might D-Bot series be a fit?
An initial view based on the recorded category and model information
May be suitable for
- Organisations assessing a robot for a defined task and work environment.
- Teams comparing the robot's recorded profile with other options.
- Businesses that want to validate the application and integration requirements.
Considerations
- Confirm capabilities and current availability with the manufacturer or supplier.
- Check the work environment, integration needs and local support before selecting a model.
Market and supply
Availability
A profile status is not a confirmed offer or delivery time
- Market status
- Commercially available
- Region
- Not publicly confirmed
- Lease / RaaS
- Not confirmed
- Rental
- Not confirmed
Manufacturer and supplier
About Delta Electronics
Delta Electronics is listed in the Robotleasen directory with one robot model.
View supplierCompare
Compare D-Bot series
| Feature | D-Bot seriesDelta Electronics | UR10eUniversal Robots | Panda (FER)Franka Emika |
|---|---|---|---|
| Market status | Commercially available | Commercially available | Discontinued |
| Application | Pick-and-place, Palletising | Machine tending, Packaging | Robotics research, Robot control research |
| Deployment | Not confirmed | Check with supplier | Not confirmed |
| Region | Not publicly confirmed | Netherlands | Not publicly confirmed |
Explore alternatives
Alternatives to D-Bot series
Profiles from the same category, selected by similar applications
Frequently asked questions
Questions about D-Bot series
What is the Delta Electronics D-Bot series?
Delta Electronics D-Bot series is a series of collaborative robot arms from Delta Electronics from Taiwan, listed for pick-and-place, palletising and machine tending. Key figures: payload 6 to 30 kg (depending on model), reach 800 to 1,800 mm (depending on model), repeatability ± 0.02 mm, degrees of freedom 6. Some figures apply under specific conditions; see the robot profile. Market status: commercially available. Availability and deployment options should be confirmed with a supplier. Robotleasen does not sell robots; it helps businesses compare suppliers and recorded information.
What are the specifications of the Delta Electronics D-Bot series?
Key figures: payload 6 to 30 kg (depending on model), reach 800 to 1,800 mm (depending on model), repeatability ± 0.02 mm, degrees of freedom 6. Some figures apply under specific conditions; see the robot profile. Values as recorded on the robot profile, generally based on manufacturer information. Configuration and operating conditions can change the figures; confirm them with the supplier.
Which supplier is listed for the Delta Electronics D-Bot series?
Delta Electronics D-Bot series is listed under Delta Electronics, based in Taiwan. Check local sales and support terms directly with the supplier.
Is the Delta Electronics D-Bot series available to buy or lease in the Netherlands?
Commercially available. Deployment: not confirmed. Whether this model is available to buy, rent or lease in the Netherlands depends on the supplier. Ask a supplier to confirm current availability.
How much does the Delta Electronics D-Bot series cost?
No reliable public price is listed for this model. Costs depend on configuration and supplier.
What is the Delta Electronics D-Bot series used for?
The applications listed for the Delta Electronics D-Bot series include pick-and-place, palletising and machine tending.
What are alternatives to the Delta Electronics D-Bot series?
Profiles include Rethink Robotics Sawyer, Rethink Robotics Baxter and Doosan Robotics A-serie. Compare their applications, specifications and market status.
News and insights
Articles are currently available in Dutch
Next step
Ask about D-Bot series
Review the recorded market status, applications and alternatives for this robot.
Sources and checks
Based on secondary sources · last checked
- Source delta-emea.com
Specifications are generally based on manufacturer information and have not been measured by Robotleasen. See our editorial approach.
